發布時間：2019-09-30
瀏覽：13284 次

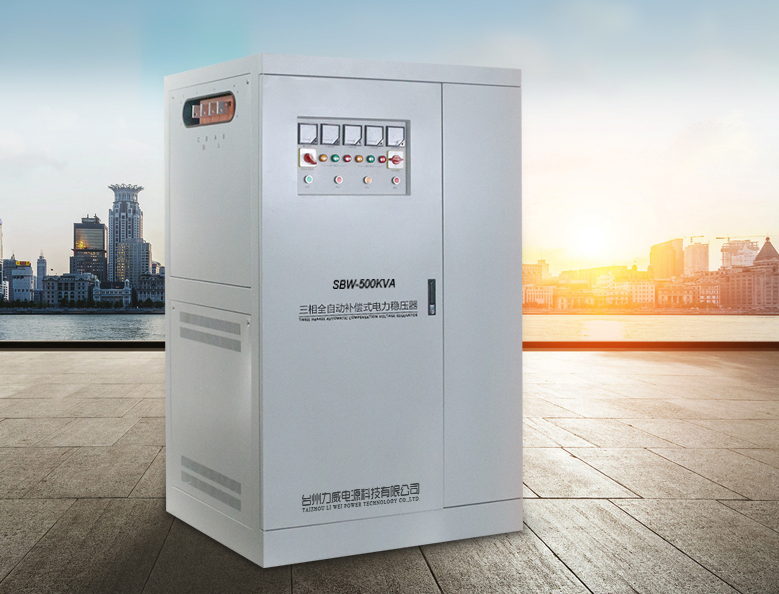

三相380V電壓穩壓器采用國際先進的補償技術設計制造，三相穩壓器(150kw,200kw,500kw)具有容量大，效率高，使用維護方便，運行可靠的特點。三相電壓380v100kw穩壓器可與任何性質負載匹配，廣泛應用于交通，郵電，通訊，廣播電視，計算機系統，注塑，數控機床及各種電動機等設備，并為進口CT機等醫療設備，各種電梯配套特種機型。
DBW/SBW Series single、three phases full automatic compensated power voltage stabilizer appliant to when the power network voltage fluctuates or the load currentvaries, it can keep output voltage in steady state auto matically, Compared with othervoltage stabilizers, it has the advantage of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for kinds of loads, bearing instantaneous overload, working continually for long time, as well as free transferring between manual controland automatic control, etc, besides, it is provided with protection against over-voltage over current ,phase failure and protection for phase sequence and has following merits: small volume, light weight, convenient installation and reliable running and so on.
使用場合
產品性能
輸入電壓 | 單相：220V±20%或者220V±30%（訂貨時需要說明） Single Phase: 220V±20%or220V±30%(order time make remark) 三相四線：380V±20%或者380V±30%（訂貨時需要說明） Three phases Four-line: 380V±20%or380V±30%(order time make remark) |
輸出電壓 | 單相：220V（相電壓） Single phases:220V（Phase Voltage） 三相：380V（線電壓） Three phases:380V （Ling Voltage） |
輸出精度 | 2-5%（可調Adjustable） |
頻率 | 50Hz/60Hz |
效率 | ≥95%（功率等級50KVA上） |
響應速度 | ≤1.5S |
環境溫度 | -10~+40℃ |
絕緣電阻 | ≥5MΩ |
過載能力 | 二倍額度電流，維持一分鐘 Double rated current one min |
波形失真 | 無附加波形失真 No additional waveform distortion |
市電功能 | 人工啟動 Byhand |
保護功能 | 過壓、過流，其它功能另外注明缺相、相序、浪涌、濾波 Overvoltage、overcurrent、other protect function when make order time Need make remark，lack phase、feel phases、sarge、filter ect. |
更持久、更耐用、更穩定、更高效
